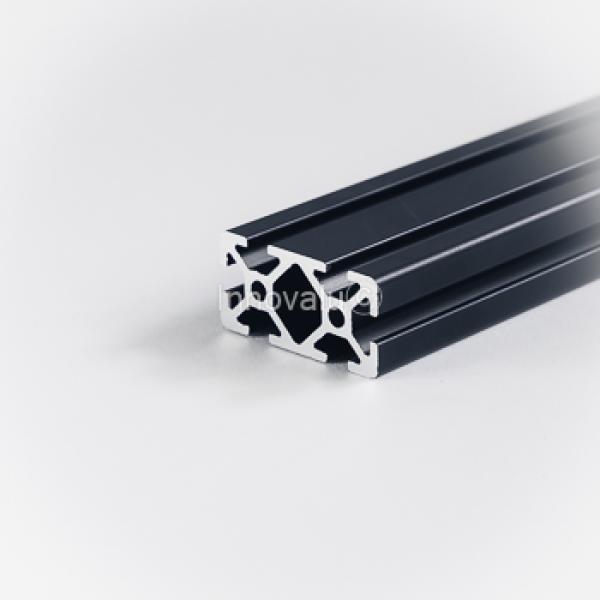

Aluminium Profile 20x40 Standard Blk

NEW

Aluminium Profile 20x40 Standard Blk

0,10 EUR
0,10 EUR per cm

incl. 20% tax excl. Shipping costs

cm:

Description

Configure profile cuts

Threading per piece (double profiles): single-sided = 2, double-sided = 4

Total length: 0 cm | Total threadings: 0

Note: Max single length 6000 mm / 600 cm. Overlength > 1980 mm / 198 cm: pickup only / on request.

Technical specifications

Material: EN AW 6063 T66

Second moment of area Ix: 1.40 cm⁴

Second moment of area Iy: 5.12 cm⁴

Section modulus Wx: 1.40 cm³

Section modulus Wy: 2.56 cm³

Weight: 0.88 kg/m

Plan smarter with our Load Check

First orientation on the load capacity of our aluminium profiles.
Ideal for project planning, directly usable online.

Notes for safe use

Install connections properly and tighten screws to the recommended torque.
Regularly inspect all connections, especially under dynamic loads.
Use only within the intended material and design limits.
For safety-critical applications, consult a structural engineer or specialist planner.
Use appropriate protective equipment during assembly.

Note: The Load Check is an orientation aid and does not replace a structural calculation.
